Danpalon U-shaped Inter Lock Polycarbonate Hollow Panel Plastic Glass Sheet for Roofing

Name: Danpalon U-shaped Inter Lock Polycarbonate Hollow Panel Plastic Glass Sheet for Roofing
Brand: Guangdong Shunde Polygao Plastic Industrial Co., Ltd.
SKU: X-Structure PC sheet
Price: 3.00 USD
Availability: InStock

All Products

Polycarbonate Solid Sheet
(140)

Polycarbonate Hollow Sheet
(139)

Polycarbonate Embossed Sheet
(16)

Polycarbonate Canopy
(10)

Corrugated Polycarbonate Sheet
(8)

PC Accessories
(6)

Aluminum Accessories
(7)

Polycarbonate Greenhouse Sheet
(7)

Polycarbonate Light Diffuser Sheet
(9)

X Structure Polycarbonate Sheet
(20)

Certification

I'm Online Chat Now

Danpalon U-shaped Inter Lock Polycarbonate Hollow Panel Plastic Glass Sheet for Roofing

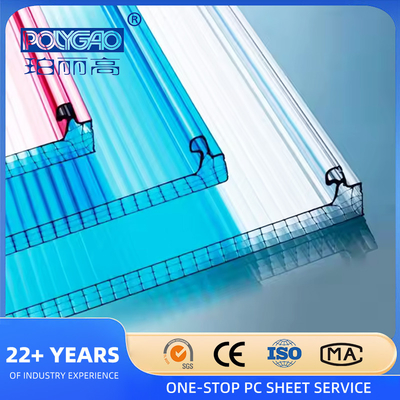

Large Image : Danpalon U-shaped Inter Lock Polycarbonate Hollow Panel Plastic Glass Sheet for Roofing

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	POLYGAO
Certification:	SGS,ROHS,
Model Number:	X-Structure PC sheet

Payment & Shipping Terms:

Minimum Order Quantity:	500 kg
Price:	3-3.3usd/kg
Packaging Details:	Two sides PE protection film covering
Payment Terms:	30% TT deposit,70% Balance before shipment
Supply Ability:	3-5days after deposit

Contact Now

Danpalon U-shaped Inter Lock Polycarbonate Hollow Panel Plastic Glass Sheet for Roofing

Description

Warranty:	NONE, More Than 10years	Material:	Polycarbonate
Feature:	Eco-Friendly, Durable	After-sale Service:	Other
Coating:	Composite Co Extrusion	Length:	Customized
Project Solution Capability:	Graphic Design	Application:	Greenhouse, Roof, Awning, Skylight, Hotel, Villa, Carport, Greenhouse Skylight Carport Awning Roofing.etc
Design Style:	Modern	Type:	Danpalon Polycarbonate Sheet
Color:	Customized	Raw Material:	100% Virgin Material
Thickness:	16mm-32mm	Width:	Customized
Uv:	50 Micron On 1 Side Or 2 Sides	Remarks:	OEM Can Be Provided According To Your Required
Product Name:	Danpalon Polycarbonate Multiwall U Locked Panel
Highlight:	Roofing U-Shaped Polycarbonate Hollow Panel , Customized Length Polycarbonate Hollow Panel

Danpalon U-shaped Inter Lock Polycarbonate Hollow Panel Plastic Glass Sheet for Roofing

Danpalon U-lock Polycarbonate Sheet Product Specification
Item	Width	Thickness	Length
	MM	MM
4 layer U-Lock	600	6	Customized
		8
		10
		12
6 layer U-Lock	600	16	Customized
		20
		22
		25
	1050	10	Customized
		12
		16
		20
		22
		25
		30
7 layer U-Lock	500	30	Customized
		40
Honeycomb Structure U-Lock	600	8	Customized
		10
		12
Raw Material	100% virgin material
Colors	Transparent,Opal,Green,Blue,Red,Bronze and Customized
Warranty	15 years
UV coating:	50 micro for one side (two sides are optional)
Application	Roofing, caldding
Packing	PE masking film (OEM available)

Technical Parameters
Impact strength	Transparency	Specific grevity	Coefficient of thermal expansion	Service temperature	Heat conductivity
2.1j/m-2.3j/m	40%-80%	1.2g/cm³	0.065mm/m°C	-40°C—120°C	3.0-3.9w/m²°C
Tensile strength	Flexural strength	Modulus of elasticity	Effect of sound insulation	Tensile stress at break	Elongation at break
≥60N/mm	100N/mm²	2400Mpa	10mm two laminates reduced 10db	≥65Mpa	>100%

Company Profile

Certifications

Product packaging

Packaging	Both sides with PE film,logo on the pe film.Other package are available based on
Delivery	within 3-10 working days once we received the deposit.
Payment	L/C, T/T, Western Union,Paypal,Cash,Card and so on.

FAQ

1.Whats the quality assurance you provided and how do you control quality ?
1)Established a procedure to check products at all stages of the manufacturing process;Besides, we also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.

2)100% inspection in assembly lines.

2.How many different kinds of PC sheet you can product?
There are the following products: Glittering Polycarbonate Sheet,Multi-wall Structure Polycarbonate Sheet,Greenhouse Polycarbonate Sheet, General Polycarbonate Solid Sheet,Advertising Polycarbonate Sheet, Polycarbonate Embossed Sheet, Polycarbonate Frosted Sheet, Soundproof Polycarbonate Sheet, Greenhouse Polycarbonate Sheet etc.

3.We are in very high temperature country, twin wall polypropylene sheet can support?
A: Yes, Polycarbonate sheet Temperature Resistance can be:40 ~+120 degree centigrade

4.Do you take special orders ?
Yes , We accept customized products.

5. How to identify the UV side of the sheet?
A: The UV side is the side protected with the printed masking film. To avoid installing the sheet at the wrong side which will void the warranty, please ensure only to remove the masking film after the sheet has been installed.

6. How do I know that a twin wall polypropylene sheet has UV layer?
A: You can’t see the UV layer with the naked eyes. A laboratory test is required to prove this. Some international labs have this facility. Usually UV side layer will more thicker than the down side.

Polycarbonate hollow sheet is made of polycarbonate (referred to as PC) material at high temperature. It has excellent properties such as heat preservation, flame retardant, UV protection, wind and rain resistance, light weight, sturdy and durable, and good aging resistance. The PC hollow sheet produced by our company is a high-quality sheet with a 10-year warranty. It is mainly used for the construction of large-scale projects such as canopy, carport, small flower house construction, highway noise barrier, and greenhouse .Our company's products can provide a variety of sheet colors, such as transparent, milky white, grass green, lake blue, mountain blue, brown, dark brown, etc., as well as custom-made sheet size and thickness customization. Welcome new and old customers to come to the store to consult and purchase our company's products.
