High Transmittance Polycarbonate Sheet Solid Plastic Panels
We are a real manufacturer and can provide online factory inspection.
Technical Specifications
| Characteristics |
Unit |
4mm |
6mm |
8mm |
10mm |
| Thickness |
mm |
4 |
6 |
8 |
10 |
| Weight |
kg/㎡ |
0.9 |
1.3 |
1.5 |
1.7 |
| Minimum radius for cold bending arches |
mm |
700 |
1050 |
1400 |
1750 |
| Standard width |
mm |
2100 |
2100 |
2100 |
2100 |
| Standard length |
mm |
No Limited |
| Light transmission (Clear) |
% |
82 |
81 |
80 |
80 |
| Light transmission (Grass green) |
% |
56 |
50 |
44 |
42 |
| Light transmission (Lake blue) |
% |
55 |
49 |
45 |
43 |
| Heat transfer coefficient K value |
W/(㎡.k) |
3.6 |
3.5 |
3.2 |
3.1 |
| Weighted sound reduction index |
db |
12 |
15 |
15 |
19 |
| Drop hammer impact |
|
Pass |
| Coefficient of thermal expansion |
mm/m.℃ |
0.065 |
| Flame retardant level |
|
B1 |
| Service temperature |
℃ |
-40 to +120 |
Product Overview
Polycarbonate hollow sheet is made of polycarbonate (PC) material at high temperature. It has excellent properties such as heat preservation, flame retardant, UV protection, wind and rain resistance, light weight, sturdy and durable, and good aging resistance. Our PC hollow sheet is a high-quality product with a 10-year warranty.
Applications

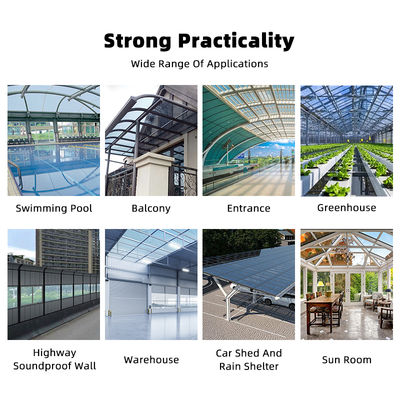

Mainly used for large-scale projects including canopy, carport, small flower house construction, highway noise barrier, and greenhouse construction.
Available Options
We offer various sheet colors including transparent, milky white, grass green, lake blue, mountain blue, and brown. Custom sizes and thicknesses are available.
Frequently Asked Questions
1. What quality assurance do you provide and how do you control quality?
1) Established procedure to check products at all manufacturing stages
2) 100% inspection in assembly lines
2. How many different kinds of PC sheet can you produce?
We produce: Glittering Polycarbonate Sheet, Multi-wall Structure Polycarbonate Sheet, Greenhouse Polycarbonate Sheet, General Polycarbonate Solid Sheet, Advertising Polycarbonate Sheet, Polycarbonate Embossed Sheet, Polycarbonate Frosted Sheet, Soundproof Polycarbonate Sheet, and more.
3. Can your sheets support very high temperatures?
Yes, our Polycarbonate sheets can withstand temperatures from -40°C to +120°C.
4. Do you accept special orders?
Yes, we accept customized products.
5. How to identify the UV side of the sheet?
The UV side is protected with printed masking film. Remove the film only after installation to ensure proper UV protection.
6. How do I know that a sheet has UV layer?
The UV layer is not visible to the naked eye. Laboratory testing is required to verify. Typically, the UV side layer is thicker than the down side.
