Product Details:
|
Material: | Polycarbonate | Light Transmittance: | 88~92% |
---|---|---|---|
Impact Strength: | 50J/m | Thermal Expansivity: | 0.065mm/m℃ |
Resistant Temperature: | -40℃~120℃ | Strength Of Extension: | ≥60 |
Bending Strength: | 100 | Elasticity Modulus: | 2400mpa |
Fracture Tensile Stress: | ≥130mpa | Tensile Strength At Break: | ≥130% |
Sound Insulation: | Reduction Of 35dB For 6mm Solid Sheet | Heat Transfer Coefficient: | 0.21 W/m²℃ |
Thickness Options: | 1.5, 2, 2.4, 3, 3.8, 4, 5, 6, 8mm | Minimum Bend Radius: | 270-1450mm (varies By Thickness) |
Minimum Span: | 540-2900mm (varies By Thickness) | ||
Highlight: | Impact Resistant Polycarbonate Solid Sheet,Eco-Friendly PC Solid Sheet,More Than 5 Years Warranty Solid Polycarbonate Panel |
High-quality impact-resistant polycarbonate sheets designed for greenhouse applications and other demanding environments.
Description | Regular Width (mm) | Thickness (mm) | Minimum Bend Radius (mm) | Corresponding Minimum Span (mm) |
---|---|---|---|---|
Solid PC Sheet | 1220, 1560, 1820, 2100 | 1.5 | 270 | 540 |
2 | 360 | 720 | ||
2.4 | 430 | 860 | ||
3 | 540 | 1080 | ||
3.8 | 680 | 1360 | ||
4 | 720 | 1440 | ||
5 | 900 | 1800 | ||
6 | 1080 | 2160 | ||
8 | 1450 | 2900 |
Property | Unit | PC Solid Sheet Data |
---|---|---|
Light Transmittance | % | 88~92 |
Impact Strength | J/m | 50 |
Thermal Expansivity | mm/m℃ | 0.065 |
Heat Transfer Coefficient | W/m²℃ | 0.21 |
Resistant Temperature | ℃ | -40℃~120℃ |
Strength Of Extension | n/mm² | ≥60 |
Bending Strength | n/mm² | 100 |
Elasticity Modulus | mpa | 2400 |
Fracture Tensile Stress | mpa | ≥130 |
Tensile Strength At Break | % | ≥130 |
Sound Insulation | db | Reduction of 35dB for 6mm solid sheet |

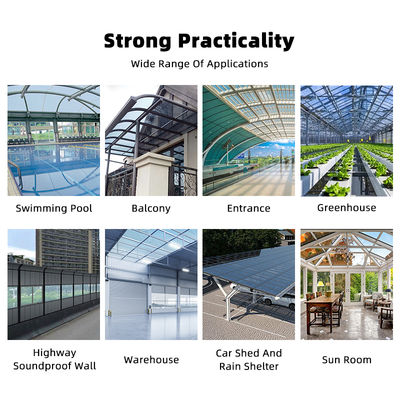

Our polycarbonate sheets are ideal for:
1) We have established procedures to check products at all stages of the manufacturing process, including identification of inspection and test status.
2) 100% inspection in assembly lines ensures consistent quality.
We manufacture various polycarbonate sheets including: Glittering, Multi-wall Structure, Greenhouse, General Solid, Advertising, Embossed, Frosted, Soundproof, and more.
Yes, our polycarbonate sheets have a temperature resistance range of -40°C to +120°C.
Yes, we accept customized product specifications to meet your specific requirements.
The UV side is protected with printed masking film. Only remove the film after installation to ensure proper UV protection.
The UV layer isn't visible to the naked eye - laboratory testing is required for verification. Typically, the UV side layer is thicker than the non-protected side.
